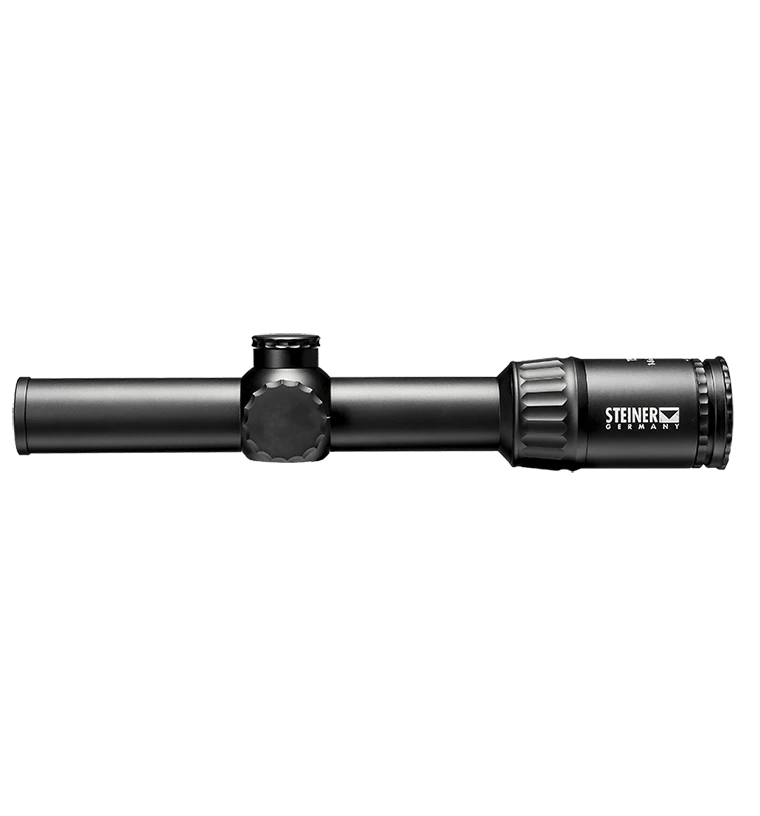

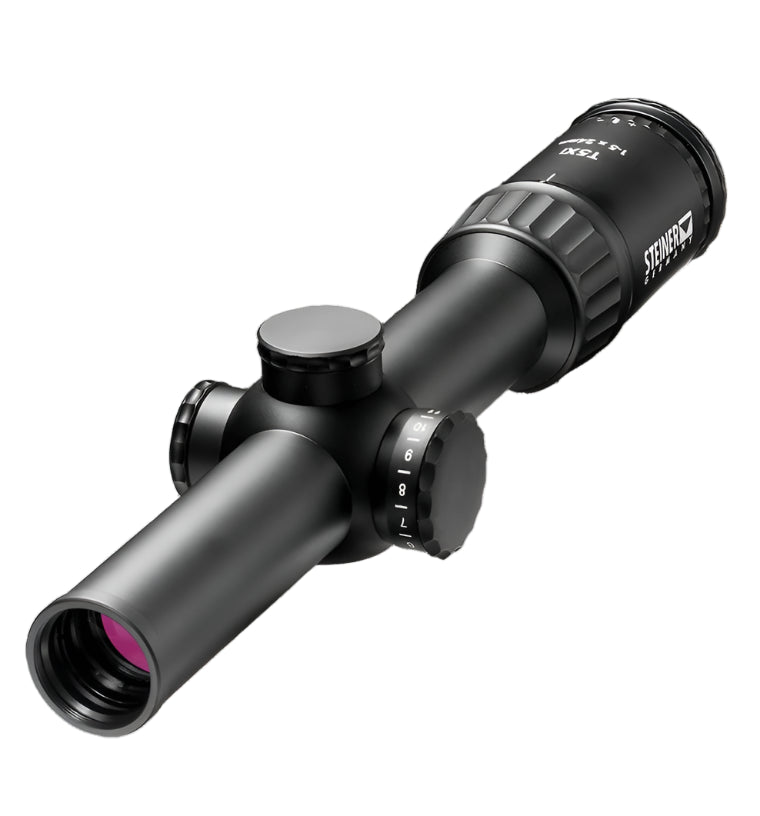

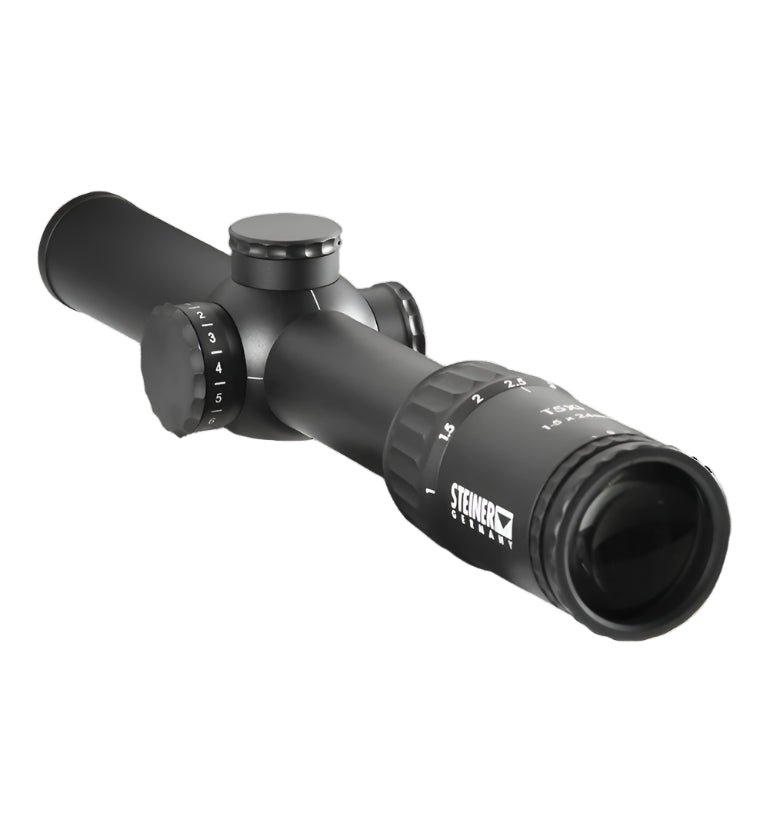

The T5Xi 1-5x24 is designed as a close-combat scope. It features a 30 mm tube, 3-Gun Tactical Reticle™ (3TR) calibrated in 5.56 or 7.62, with true 1x eyes-open capability for situational awareness and 5x power to engage distant targets. Model 5102 is ideal for 7.62 or 5.56/.223 platforms.
Included Accessories: Battery, Lens Cloth, Lens Cover, Sunshade, Allen Wrench, Throw Lever
Model 5102
FEATURES:

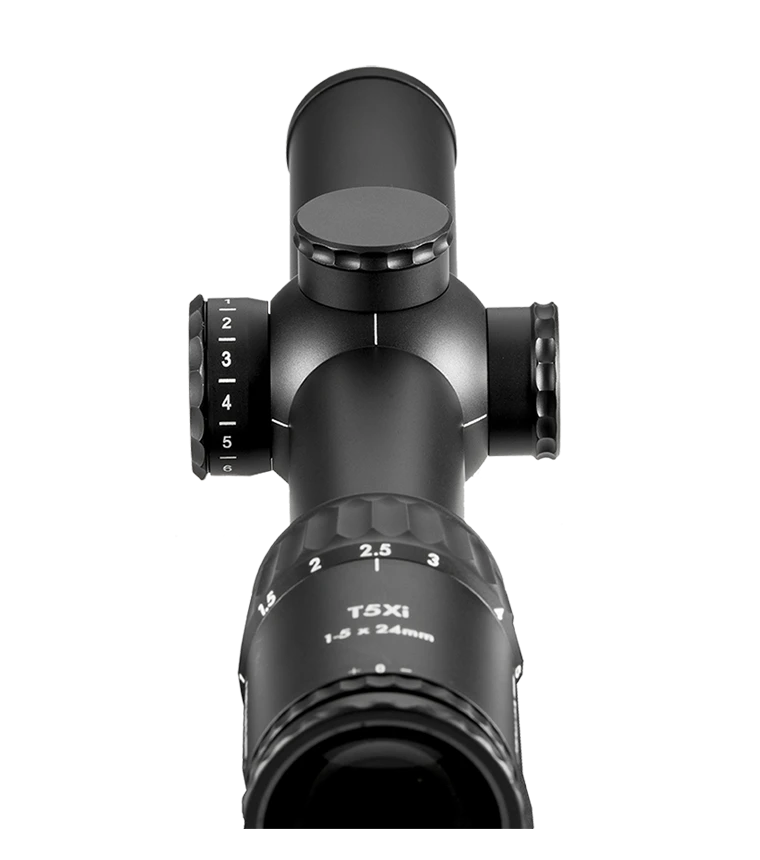

Tapered, All Metal Magnification Ring is angled so the shooter can see his magnification setting while positioned directly behind the scope.
Locking Dioptor that prevents accidental rotation of the diopter.
|
|
|
|
|
|
|
|
| Field of View at 100 meters |
21-108 ft at 100 yds |
| Eye Relief |
3.5 to 4.3 in. |
| Exit Pupil |
4.8 - 11 mm |
| Length |
11.3 in |
| Weight |
19.4 oz |
| Diopter Adjustment Range |
-3 to +2 dpt |
| Elevation Adjustment Knob |
Resettable Zero |
| Illumination Control |
Illuminated Reticle with 4-day/7-day levels, LED, Red |
| Wind/Elevation Click Value |
1 cm (0.1 mrad) |
| Elevation Range at 100 m. |
30 mils |
| Wind Range at 100 m. |
30 mils |
| Parallax/Focus |
Fixed |
| Parallax/Focus Range |
100 yds |
| Nitrogen Filled |
Yes |
| Operating Temperature Range |
-13 to +145 Fahrenheit |
| Lens Cap |
Yes |
| Waterproof/Fogproof |
Submersible to 33 ft |
| Battery |
CR2450 |
| Special Features |
Resettable turrets, 2nd rotation indicator, locking diopter |
| Warranty |
Heritage Warranty |
|
