Wilcox RAID Xe - Crane Connector - Full Power Laser

Wilcox RAID Xe - Crane Connector - Full Power Laser

Regular price $3,750.00
Will be in stock after

Color :

Black Flat Dark Earth

Visible Laser Color :

Green Laser Red Laser

Join Waitlist

Wishlist Compare

Vendor: Full Metal Jacket, LLC

Sizing

Our sizing is based almost entirely off of the U.S. Battle Dress Uniform sizing system. This system is also in use with almost every manufacturer of military clothing today. We have provided the official measurements of the system here in U.S. and metric. Some items (mostly foreign items) will be converted into the U.S. sizing system for simplicity, but we will provide the original country’s measurement system alongside it, and information on how it fits.

Jackets, parkas, and other layering items will generally be oversized for layering underneath. In this case, the item will be sized by how it is supposed to be worn. We will also provide info on how to make it fit more fashionably if you don’t want to layer it.

No Return on Electronics

*NO RETURNS ON ELECTRONICS WILL BE ACCEPTED*

👀 customers are viewing this product

🔥 24 sold in last 3 weeks

Guarantee safe checkout

Wilcox RAID Xe - Crane Connector - Full Power Laser - Black / Green Laser

Color

Visible Laser Color

$3,750.00

Description Material

This item is restricted to Military/Law Enforcement/Government Purchasers ONLY. All buyers will be contacted within 24 hours of purchase to confirm their identity and that these will be shipped to a qualified individual. Please contact us with any questions or comments as well as unit purchases for multiple units.

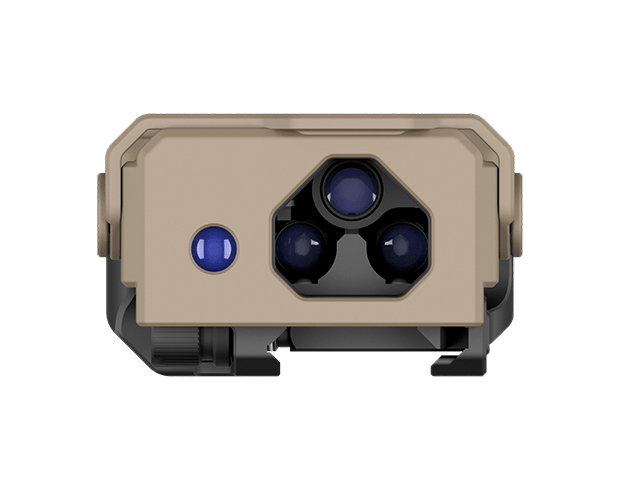

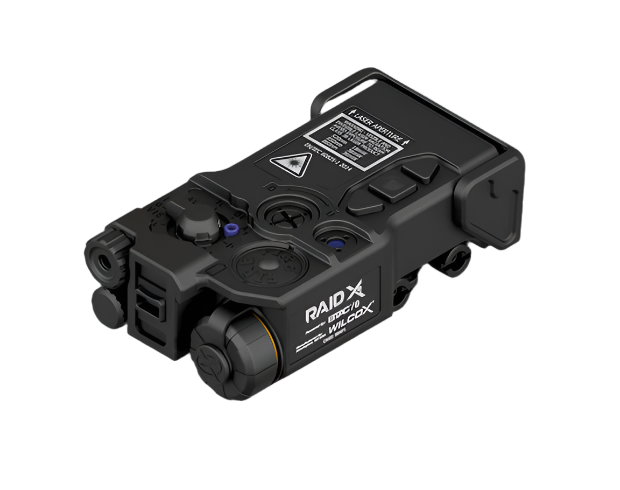

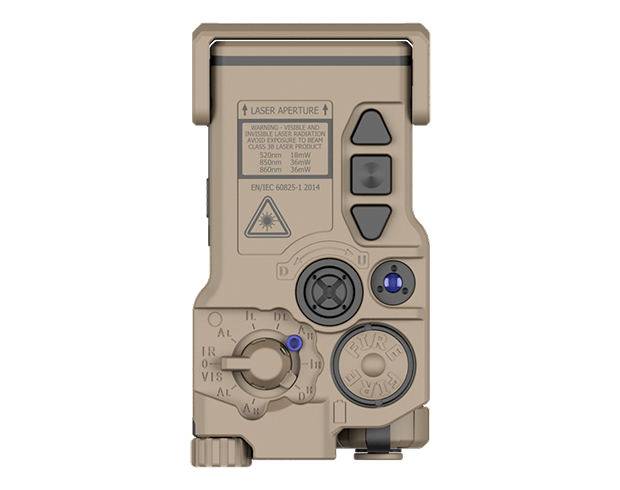

The Wilcox RAID Xe is the next generation in the RAID line of products. The RAID Xe is a high power laser aiming device designed for assault and crew served weapons.

The RAID Xe provides a smaller, lighter, stronger laser aiming device with superior, uncompromising performance. The ultimate beam clarity and uniformity aide rapid target acquisition and the built-in networking capabilities give the RAID-Xe superior maintenance and replenishment connectivity, all increasing the warfighter’s lethality and situational awareness.

Configuration

Wilcox Connector

Includes Wilcox Connector Junction Box with Ergocto Xe Activation Keypad, with single 12" cable. (The button configuration out of the box is; Middle Button mirrors rotary switch, Rear button (closest to cable) is Dual IR Low, and the Front button is Room Illuminator.)
Remote port accepts Wilcox line of ERGOCTOTM XeTM Activation Keypads and ERGOCTO Xe Control Grips (optional).
Remote port accepts Wilcox line of pressure pads.

Features

One optical bench houses either red or green VIS laser, NIR laser, NIR room/variable Illuminators.

NIR illuminator projects precise beam clarity for optimal combat identification and target acquisition.

NIR room illuminator provides 40o flood capabilities.

Optical bench is aligned to weapon by one windage and one elevation adjustment.

Mounts to any 1913 Picatinny rail secured by 2 shock nuts.

Multi-function keypads provide flexibility in programing custom option.

Five (5) selectable pulse modes on VIS/NIR lasers settings.

Selectable or auto adjustable laser/illuminator brightness settings.

User interchangeable modular visor/laser safety cover.

The connector junction box can be changed to either Wilcox Connector or Legacy Crane Connector.

Specifications

Weight (With Battery)	153.09g (5.4 oz)
Battery	One (1) CR123 Battery
Battery Life	Over 8 Hours
Immersion	1 Meter for 1 Hour
Boresight Retention	<.5 mrad
Laser Type/Wavelength/Power*	Red Visible Laser/640nm/15mW
Laser Type/Wavelength/Power*	Green Visible Laser/520nm/15mW
Laser Type/Wavelength/Power*	Infrared Laser/850nm/30mW
Laser Type/Wavelength/Power*	Infrared Illuminator/860nm/30mW

* Nominal Output Power is subject to +/-10% tolerance. For Laser Safety use Nominal Output Power + 20%.

ITAR Restricted.

Cannot ship outside of the United States or to forwarding addresses. No exceptions.
