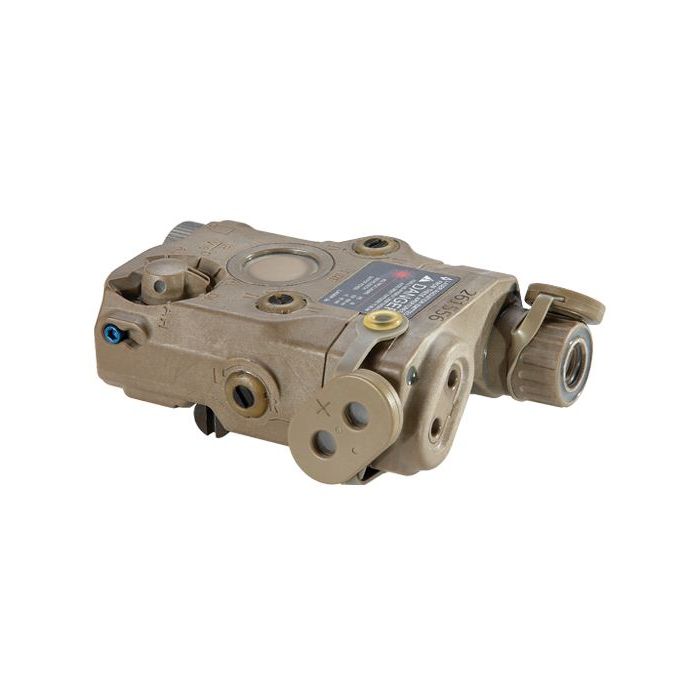

The L3Harris ATPIAL-C Class 1/3R IR Laser is a low power, small, lightweight, easy-to-use laser aiming system with integrated (IR) infrared and visible aim lasers as well as an IR illuminator. The ATPIAL-C, when used with a night vision goggle, is an economical solution for target acquisition - day or night.
Features
Co-aligned visible and infrared lasers.
MIL-SPEC hardened for use on small arms with 1913 rail.
Five interchangeable pattern generators.
Optional single and dual-button remotes.
Specifications:
| Dimensions |
4.6 in. L x 2.8 in. W x 1.6 in. H |
| Weight |
7.5 oz. |
| Battery Type |
(1) 3 Volt Lithium |
| Battery Life |
> 6 hrs. |
| |
|
| Visible Aim Laser |
Specifications at 25 °C (77 °F) |
| Output Power |
5.0 mW / 3R Safety Class |
| Beam Divergence |
0.5 mrad |
| Wavelength |
650 nm |
| Range |
> 25 m |
| |
|
| IR Aim Laser |
Specifications at 25 °C (77 °F) |
| Output Power |
.6 mW / 1 Safety Class |
| Beam Divergence |
0.5 mrad |
| Wavelength |
840 nm |
| Range |
> 600 m |
| |
|
| IR Illuminator |
Specifications at 25 °C (77 °F) |
| Output Power |
3.5 mW / 3R Safety Class |
| Beam Divergence |
105 mrad |
| Wavelength |
820 to 850 nm |
ITAR Restricted.
Cannot ship outside of the United States or to forwarding addresses. No exceptions.
